ENIG multilayer pcb manufacturer from China manufacturer - Shenzhen Tianweisheng Electronic Co., Ltd.

Price:	0.02~0.3 USD
Payment Terms:	T/T,L/C,WU,
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: tws-2013061903

Production Capacity: 10000 square meter

Delivery Date: 5-7 working days

Brand Name: TWS

Copper Thickness: 1oz

Min. Hole Size: 0.2mm

Min. Line Spacing: 0.15mm

color: all colours

Shape tolerance: +/-0.13

Standard: IPC-A-610D

legend colour: white

Means of Transport: Ocean,Land,Air,

Packing: vacuum plastic and carton, ...

Number of Layers: 6-Layer

Base Material: FR4

Board Thickness: 1.6mm

Min. Line Width: 0.15mm

Surface Finishing: HASL,ENIG,OSP,immersion gol...

contouring: milling and V-cut

Tolerance of finished panel thickness: +/-10%

Certification: UL,ISO

Name: Free testing charge ENIG mu...

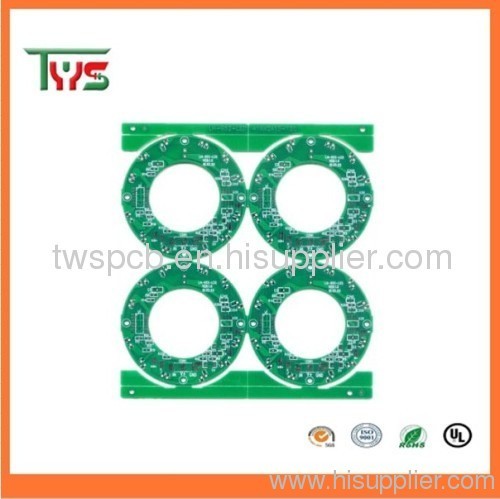

ENIG multilayer pcb manufacturer
1.High precision,100% test
2.HASL,OSP,immersion gold
3.UL,ROHS,ISO9001
4.No MOQ request.

Free testing charge ENIG multilayer pcb manufacturer with good performance

FR4 PCB manufacturer 1.6mm,1oz, lead free HASL,Blue

Material:ceramic ,F4 BK-2 , Alu, Rogers, High Tg FR4, FR1, CEM-1, FR-4,etc

BoardThickness: 0.4-6.0 mm

Treatment :Lead Free HASL, ENIG, Immersion Tin, Immersion Silver, OSP etc.
Solder Mask: Green, Red, White, Yellow, Black, Blue.

* We canprovide quickturn prototype and small quantity PCBs with short lead time.
*The quality of Our products is excellent and stable.
* We choose the bestmaterial for all our products.
* We will send the boards to you by DHL, TNT,UPS, FEDEX and so on to saving the transport time.
* For responsingpromptly, we will reply your e-mail from 9: 00am to 23: 00pm by two shifts.
We sincerely hope to establish longtime and friendly business relationshipwith you. Good quality,
reasonable price and the 5-Star service are guaranteed.

No.	Items	Specifications
1	Floor	2-30(Layer)
2	Maxarea	600 x1200mm
3	Minimumthickness	2(Layer) 0.20mm
		4(Layer) 0.40mm
		6(Layer) 0.80mm
		8(Layer) 1.00mm
		10(Layer)1.20mm
4	Minimum linewidth	0.075mm
5	Minimumspacing	0.075mm
6	Minimumaperture	0.1mm
7	Hole Wall CopperThickness	0.025mm
8	Metaltolerance of aperture	±0.08mm
9	Diameter tolerance ofnon-metallic	±0.025mm
10	Hole positiontolerance	±0.05mm
11	OutlineTolerance	±0.1mm
12	Minimum solderbridge	0.10mm
13	Insulationresistance	1E+12Ω(Normal)
14	AspectRatio	10 : 1
15	ThermalShock	288°C20(Second)
16	Twist andbend	≤0.7%
17	Electricstrength	>1.3KV/mm
18	PeelStrength	1.4N/mm
19	Solderstrength	>6H
20	Flameretardant	94V-0
21	Impedancecontrol	±5%

Free testing charge ENIG multilayer pcb manufacturer with good performance

PCB Manufacturing Services

     High quality PCBmanufacturing
     Military,space and commercial applications
     Wide array ofsubstrates
     Smallprototype runs
     Large scaleproduction runs
     ENIG,Immersion Silver, Lead Free HASL
     Edge plating,plated slots
     Blind / Buriedvias
     Fast turntimes
     reasonableprices!

Free testing charge ENIG multilayer pcb manufacturer with good performance

Why us?

1. Related Certificate --- UL,ISO9001:2000 , ISO14001:1996

2. Dominant item ---rigid-flexiblePCB, impendence control PCB, laser hole ,aluminum PCB ,Ceramic PCB

3. Advantage Speedy delivery , Highreliable .Germany equipment ,competitive price

4. fast prototype service S/S in24hrs , 4-8layers in 48-96 working hrs production time ;

5. provide prototype, mold making, plastic injectionmolding, part painting, ProfessionalComponents purchasing SMT (Surface mountingtechnology),COB,DIP,PCBA service as one unit.

Free testing charge ENIG multilayer pcb manufacturer with good performance
