Model No.: WRE809

Production Capacity: 1000square meter/per day

Delivery Date: 3~10days

Independence tolerance: +/-10%

Layer count: 1-20

Gold finger: Ni: 80~250u", Au: 1~5u"

Via plug: Max via size: 24mil (0.6mm)

Certification: UL/SGS/ROHS

Means of Transport: Ocean,Land,Air,

Packing: Inner vacuum and plastic pa...

Max pane size: 14"*20"

Aspecr Ratio: 9:1

Solder mask abrasion: ≥8H

Warp and twist: ≤0.75%

Peel Strength: 1.4N/mm

1.Base Material:aluminum for pcb
2.copper thickness:1.5oz
3.board thickness:1.2mm
4.Surface treatment:ENIG
5.layer:1~12

Quick Details

Place ofOrigin:	Guangdong China (Mainland)	BrandName:	OEM	ModelNumber:	YZX-1033
Base Material:	FR4	Copper Thickness:	2oz	Board Thickness:	3.2mm
Min. Hole Size:	0.3mm	Min. Line Width:	5mil	Min. Line Spacing:	5mil
Surface Finishing:	ENIG	Hight quanlity pcb board:	Multilayer pcb	Durable board:	PCB with best price
Electronic Components:	FR4 pcb board	Cem1 pcb board:	Hasl pcb board	key word:	cheap pcb prototype
color:	green	legen:	white	other technology:	gold finger
part service:	provide part purchasing service	special service:	layout, produce, assembly

Packaging & Delivery

Packaging Detail:	vacuum for inner packing , carton for outer packing,
Delivery Detail:	4-6days

Specifications

1.Rigid PCB Prototype.
2. Pcb OEM, clone and pcba
3. UL, ISO certificate.
4. INCLUDE 1-24 layers PCB
5. Accept sampleorder

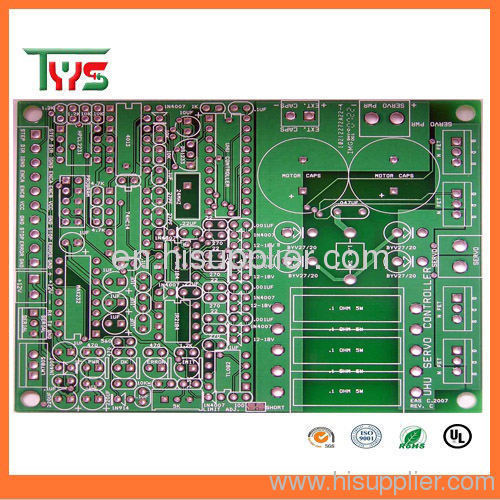

HIGH QUALITY ANDGOOD DESIGN Rigid cheap pcb prototype

Welcome Yuzhixiang Electronics Co.,Ltd

YZX,Professional PCB manufacture and assembly

Quotationrequired:
1) Gerber file / PCBfile & Bom list
2) Clear picturesof pcb/ fpc/ pcba or pcba sample for us
3) The PCB specification: base material, boardthickness, copper thickness,

surface finishing, gold immersion thickness, and any other specialrequirements.
4) Test method forPCB/PCBA

PCBcapacity:

	Specification Inch (mm)
Material	FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant)/CEM-3/CEM-1/Aluminium
Layer No.	1-30
Board thickness	0.0075"(0.2mm)-0.125"(3.2mm)

Board Thickness Tolerance	±10%
Cooper thickness	1/2OZ-4OZ
Impedance Control	±10%
Warpage	0.075%-1.5%
Peelable	0.012"(0.3mm)-0.02'(0.5mm)

Min Trace Width (a)	0.005"(0.125mm)
Min Space Width (b)	0.005"(0.125mm)
Min Annular Ring	0.005"(0.125mm)
SMD Pitch (a)	0.012"(0.3mm)
pcb with green solder mask and LF-FREE surface finishingBGA Pitch(b)	0.027"(0.675mm)
Regesiter torlerance	0.05mm

Min Solder Mask Dam (a)	0.005"(0.125mm)
Soldermask Clearance (b)	0.005"(0.125mm)
Min SMT Pad spacing (c)	0.004"(0.1mm)
Solder Mask Thickness	0.0007"(0.018mm)

Hole size	0.01"(0.25mm)-- 0.257"(6.5mm)
Hole Size Tol (+/-)	±0.003"(±0.0762mm)
Aspect Ratio	6:1
Hole Registration	0.004"(0.1mm)
Plating
HASL	2.5um
Lead free HASL	2.5um
Immersion Gold	Nickel3-7umAu:1-3u''
OSP	0.2-0.5um
Outline
Panel Outline Tol (+/-)	±0.004''(±0.1mm)
Beveling	30°45°
V-cut	15° 30° 45° 60°
Certificate	ROHSISO9001:2000TS16949SGSUL

Advanced ProductionEquipment

Product HighQuality Perfect
electronic PCB manufacturer and pcb assembly

Our deliverytime:

1.About Factory:

Experience: we have 20 years experinecsin circuit board manufacturing,with 50 employees and 60 excellent engineers,covering an area of 13000 square meters.Monthly capability is more than 5000square meters, 4500 types/month. we cooperate with some well-known enterprises,such as Panasonic, HP,Honeywell and so on.

2.Good after sales service:

anything wrong happening in our products willbe solved within 2 hours. we always offer relative technical support/consultant.Quick response. all your inquiry will be replied within 24 hours.

3.Ourproducts and service are sold well in North America,West Europe, Japan,Singpore, Malaysia and other countries.
electronic PCB manufacturer and pcb assembly

Meet your need is ourgreatest pursuit .If you are looking for a pcb board manufacturerinchina,Pleasegive us your files ofpcb for a quote (Gerberfiles and specification),I will reply email in 3hours. Youalso cancontact usby .

1.Advanced production lines andprofessional staff.

2.Honesty credibility in china'stop.

3.Competest price but highquality.

4. One-stopservice.

5.Delivery ontime.
electronic PCB manufacturer and pcb assembly
