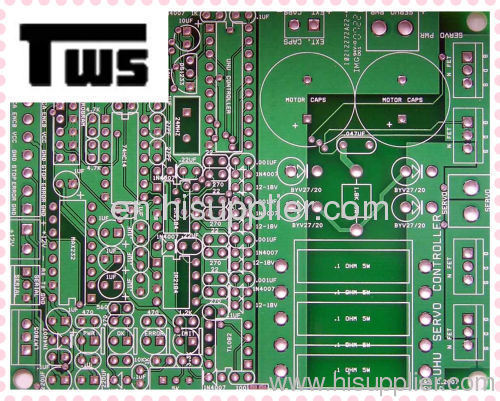

thick copper PCB HASL from China manufacturer - Shenzhen Tianweisheng Electronic Co., Ltd.

Price:	57.0~200.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU,
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TR320

Production Capacity: 1000square meter/per day

Delivery Date: 3~10days

Independence tolerance: +/-18%

Layer count: 1-24

Gold finger: Ni: 80~250u", Au: 1~5u"

Via plug: Max via size: 24mil (0.6mm)

Certification: UL/SGS/ROHS

Means of Transport: Ocean,Land,Air,

Packing: Inner vacuum and plastic pa...

Max pane size: 34"*25"

Aspecr Ratio: 10:7

Solder mask abrasion: ≥10H

Warp and twist: ≤0.55%

Peel Strength: 1.4N/mm

1.Base Material:Aluminum pcb
2.copper thickness:0.5OZ
3.board thickness:1mm
4.Surface treatment:HASL
5.layer:1~18

Specifications

1.Reputable manufacturer
2.Certificate:ISO UL ROHS
3.Matrial: FR-4/Aluminum
4.Timely delivery

Hello, areyou still looking for some manufactory to test your PCB circuit design?

we offer3-6 workdays delivery time for make protoypes.

1.We have 10 years experience in circuitboard,Printed Circuit Board field to serve your needs

2.Competitive circuit board, Printed CircuitBoard price with high quality

3.Excellent service and promptdelivery

4.Our circuit board, Printed Circuit Board getISO and UL Certificates and meet ROHS REACH standard

5. You can contact us at any time, we are24-hour service for you !

Our PRINTED CIRCUIT BOARD Technicalcapabilities

NO	ITEM	Technical capabilities
1	Layers	1-10 layers
2	Max. Board size	2000×610mm
3	Min. board Thickness	2-layer0.15mm
		4-layer0.4mm
		6-layer0.6mm
		8-layer1.5mm
		10-layer1.6~2.0mm
4	Min. line Width/Space	0.1mm(4mil)
5	Max. Copper thickness	10OZ
6	Min. S/M Pitch	0.1mm(4mil)
7	Min. hole size	0.2mm(8mil)
8	Hole dia. Tolerance (PTH)	±0.05mm(2mil)
9	Hole dia. Tolerance (NPTH)	+0/-0.05mm(2mil)
10	Hole position deviation	±0.05mm(2mil)
11	Outline tolerance	±0.10mm(4mil)
12	Twist & Bent	0.75%
13	Insulation Resistance	>10¹² Ω Normal
14	Electric strength	>1.3kv/mm
15	S/M abrasion	>6H
16	Thermal stress	288°C 10Sec
17	Test Voltage	50-300V
18	Min. blind/buried via	0.15mm(6mil)
19	Surface Finished	HAL, ENIG, ImAg, Imsn OSP, Plating AG, Platinggold
20	Materials	FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copperbase

Advanced ProductionEquipment
electronic PCB manufacturer and pcb assembly

Product HighQuality Perfect
electronic PCB manufacturer and pcb assembly

Meet your need is ourgreatest pursuit .If you are looking for a pcb board manufacturerinchina,Pleasegive us your files ofpcb for a quote (Gerberfiles and specification),I will reply email in 3hours. Youalso cancontact usby .

1.Advanced production lines andprofessional staff.

2.Honesty credibility in china'stop.

3.Competest price but highquality.

4. One-stopservice.

5.Delivery ontime.
electronic PCB manufacturer and pcb assembly
